4S 10A Lithium Battery Protection Board with Bluetooth and Temp Sensor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Base Material | FR-4 | Copper Thickness | 0.5-4oz/1oz/2oz Or Custom |
|---|---|---|---|
| Board Thickness | 0.2-6mm | Min. Hole Size | T/2mm/0.2mm/0.15mm Or Custom |
| Min. Line Width | 0.15mm/0.11mm Or Custom | Min. Line Spacing | 0.15mm/0.11mm Or Custom |
| Number Of Strings | 3-24S Custom | Voltage | 12V/24V/36V/48V/60V Custom |
| Balance Function | Yes | Temp Sensor | Yes |
| BT Function | Yes | Size | 61*35mm |
| Common Version | Common Port For Charge/discharge | Customize Current | 10A-200A |
| Voltage Balancing Accuracy | ±25mV | ||
| Highlight | 4S lithium battery protection board,BMS with Bluetooth and temp sensor,10A battery management system with warranty |
||
Product Description

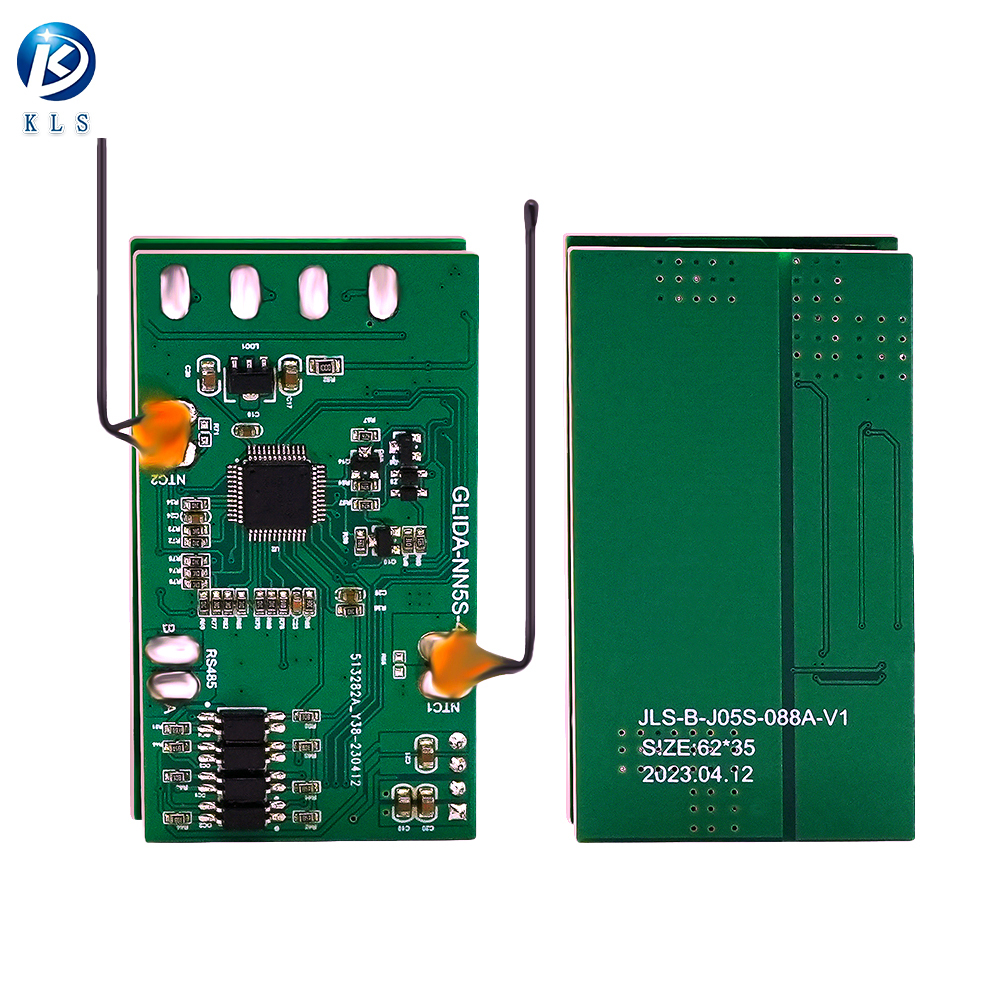

KLS 4S 10A Intelligent BMS Lithium Battery Protection Board
Universal BMS solution for Lithium Iron Phosphate and Ternary Lithium batteries with intelligent protection features.
Product Specifications
| Attribute | Value |
|---|---|
| Base Material | FR-4 |
| Copper Thickness | 0.5-4oz/1oz /2oz or custom |
| Board Thickness | 0.2-6mm |
| Min. Hole Size | T/2mm/0.2mm/0.15mm or Custom |
| Min. Line Width | 0.15mm/0.11mm or Custom |
| Min. Line Spacing | 0.15mm/0.11mm or Custom |
| Number of Strings | 3-24S Custom |
| Voltage | 12V/24V36V/48V/60V Custom |
| Applicable Battery | LiFePO4, Li-ion 18650 Bluetooth |
| Application field | Low speed four wheel vehicle |
| Certifications | CE, FCC, ISO, UL, ROHS, EPR |
| Balance Function | Yes |
| Temp Sensor | Yes |
| BT Function | Yes |
Product Details
Key Features
- Model: KLS-088

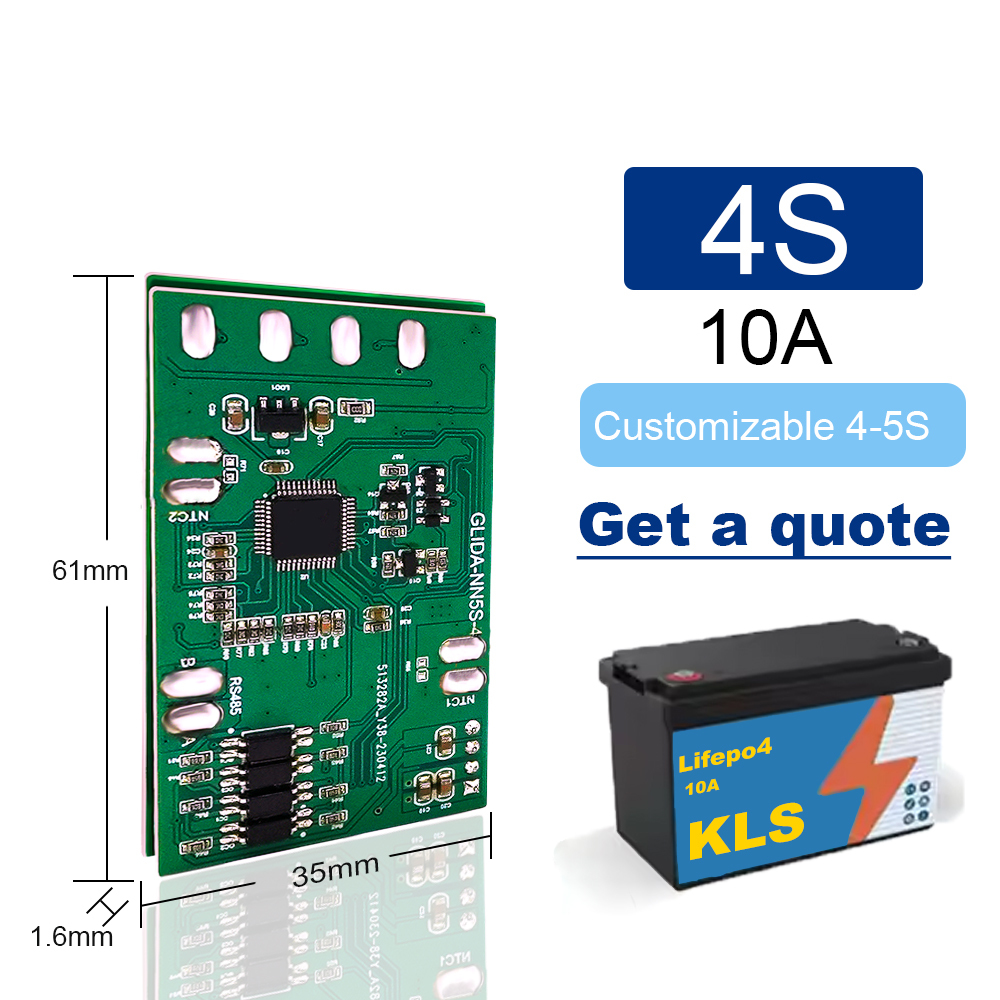

- Size: 61*35mm
- Common port for charge/discharge
- Customizable from 3S-24S lithium batteries
- Custom current range: 10A-200A
- Minimum order quantity: 1 piece
- Packaging: bubble bag/box
Frequently Asked Questions
What certifications do your BMS/protection boards hold for global compliance?
Our products comply with CE, RoHS, and UL standards. Custom certifications are available for OEM/ODM projects. Full documentation ensures seamless market entry.
Can you customize BMS parameters for LiFePO4, NMC, or other battery types?
Yes. Provide voltage range (e.g., 12V-72V), cell configuration, discharge current (up to 300A), and communication needs (CAN/RS485/Bluetooth...) for tailored solutions.
How does your BMS prevent critical failures like overcharge or short circuits?
Multi-layer protection includes: ±25mV voltage balancing accuracy, ultra-low impedance MOSFETs for precise current control, real-time temperature monitoring via NTC sensors, and SOC/SOH tracking with industrial-grade ICs.
What is your minimum order quantity and lead time?
Standard MOQ: 1 unit (3-7 days). Bulk orders (10,000+ units) qualify for 10-day expedited production and volume discounts.
Do you offer waterproof BMS for EVs or marine applications?
Yes. Feature wide-temperature operation (-40°C to +85°C), vibration resistance, and automotive-grade connectors. Custom sealing options available.
