13S Ternary Lithium Battery Management System BMS with 5A-50A Current Range and 25A Continuous Current for Power Tools and Energy Storage
| Place of Origin | shenzhen,china |
|---|---|
| Brand Name | KLS |
| Certification | CE,UL,ROHS,ERP..... |
| Model Number | B510 |
| Minimum Order Quantity | 1 |
| Price | $4.2-6.5$ |
| Packaging Details | Bubble wrap antistatic packaging |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C,D/A,D/P,Western Union,T/T,MoneyGram |
| Supply Ability | 1000000pcb/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | FR4 /aluminum/ceramic CEM1 | Communicationinterface | CAN, UART, RS485 |
|---|---|---|---|
| Place Material | Guangdong ,China | Function | Battery Management System |
| Base Meterial | PCB | Board Thickness | 1.6mm |
| Voltagerange | 12V To 96V | Surface Finishing | HASL Lead Free |
| Port | Shenzhen | Certifications | CE, UL, RoHS |
| Displaytype | LED Indicators | Item | Custom Circuit Board |
| Application | NMC/Lifepo4 Battery Pack | Voltage | 24V/36V/48V/60V/72V |
| Board Size | HASL Lead Free | ||
| Highlight | 13S Ternary Lithium BMS,5A-50A Current Range Battery Management System,25A Continuous Current Lithium Battery Protection Board |
||
You can tick the products you need and communicate with us in the message board.
Product Description
13S 5A-50A BMS for LiFePO4/Lithium Ion/Sodium Ion/NMC Battery Pack
High-performance battery management system designed for power tools, featuring temperature detection, battery equalization, and low-voltage protection.

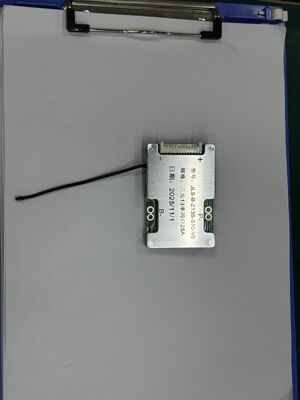

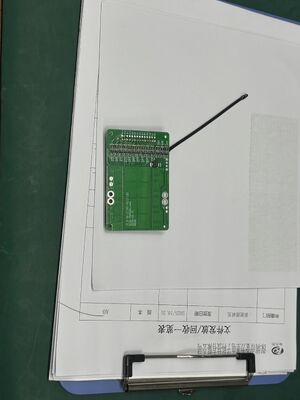

13S Ternary Lithium Battery Protection Board
Same-port charge/discharge design with maximum 50A continuous current
High-precision protection IC for reliable operation
Compact 75mm × 50mm × 1.6mm PCB size
RoHS compliant and environmentally friendly
Product Specifications
| Model | JLS-B-Z13S-510-V0 |
|---|---|
| Battery Type | 13-cell ternary lithium-ion/polymer lithium battery pack (48V system) |
| Interface | Same-port charge/discharge design |
| Continuous Current | Up to 25A (50A maximum) |
Key Features

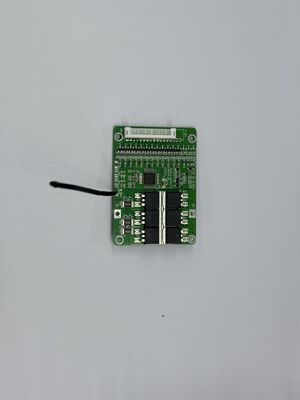

- High-precision SH3676014BP protection IC for accurate voltage/temperature monitoring
- 8 JJW low on-resistance MOSFETs (JMSH1005PE) for strong current handling
- Simplified wiring with shared charge/discharge interface
- Comprehensive protection: OVP, UVP, OCP, SCP, and OTP
- Supports external NTC for temperature monitoring
- Ideal for power tools, energy storage systems, and light electric vehicles
Protection Functions
- Overcharge Protection (OVP)
- Over-Discharge Protection (UVP)
- Overcurrent Protection (OCP)
- Short Circuit Protection (SCP)
- Over-Temperature Protection (OTP)
